Transit Expansion Can Bring Old Rights of Way Back Into a Property Transaction

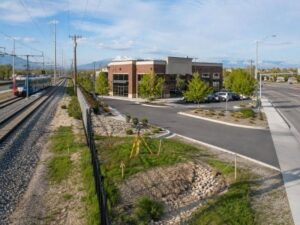

A transit line rarely arrives on empty ground. An ALTA Survey near a growing transit corridor often uncovers old transportation rights that nobody has thought about in decades, including abandoned rail lines, former streetcar dedications and street widths dedicated long ago but never built. Those interests sit quietly in the title record until a project brings them back to life, and a buyer inherits the whole file.
Identifying Historic Transportation Interests in the Title Record
Cities dedicated more corridors than they ever built. A plat from 1905 may have set aside a hundred foot street where a sixty foot street exists today, leaving forty feet of dedicated right of way sitting under someone’s parking lot. Rail companies acquired strips that later got sold, leased or simply abandoned without any clear release.
The surveyor works through those exceptions one at a time. Some plot cleanly against the modern parcel. Others describe a corridor in terms that no longer connect to anything on the ground. Sorting out which is which requires reading the original documents rather than trusting the summary in a title commitment.
Comparing Recorded Widths With Today’s Street and Track Geometry
The legal corridor and the visible street rarely match. A road may sit off center within its right of way, or the pavement may occupy less than half of what the dedication covers. Owners assume their property starts at the curb, and it frequently starts well behind it.
The survey plots the recorded lines and measures the physical improvements, then shows both. That comparison reveals how much of an apparent yard, parking area or landscaped strip actually sits inside a public corridor. A building set close to the curb may sit inside the right of way entirely, which changes the value of the deal.
Locating Buildings and Parking Near the Affected Area
Improvements near a corridor carry the most risk. The survey locates buildings, parking, driveways, signs and utilities close to the affected lines, since those elements determine what a corridor expansion would cost the owner.
Parking counts deserve close attention. A commercial property may need a set number of spaces to satisfy its zoning or its lease obligations, and losing a row to a corridor widening can break both. Measuring the spaces and their position against the recorded line shows how much cushion the property has.
Reviewing Access After Transportation Changes
Access questions follow transit projects everywhere. A driveway that works today may face closure when a street gets rebuilt, and a corner property may lose a curb cut when an intersection changes. Service routes and loading areas depend on approaches that a project can eliminate.
The survey documents the current access and its relationship to the corridors. It shows where a property depends on a specific entrance and where alternatives exist. That information lets a buyer evaluate what a future project could take away and what it would leave behind.
Separating Existing Rights From Future Plans
The drawing shows what the record contains today. Proposed acquisitions, planned alignments and future station areas live in agency planning documents, and they do not appear in a title commitment until somebody records something.
A buyer needs both sources. The survey handles the recorded interests and the physical conditions. Agency records handle the plans, the timelines and the acquisition maps. Confusing the two leads to bad decisions, since a corridor shown on a planning map may never get built, and a right recorded in 1912 is enforceable right now.
Frequently Asked Questions
Can an ALTA Survey show a former rail or transit right of way?
Yes, where the documents describe it well enough to plot. Old rail corridors often appear as exceptions in the title commitment, and the survey places them against the modern parcel and any surviving physical evidence.
Will a proposed future transit acquisition appear on the survey?
No. A survey plots recorded interests and existing conditions, so a plan that exists only in an agency study will not show up. Buyers concerned about future projects should review the agency’s planning records alongside the survey.
Who determines whether an old transportation interest has been released?
A title attorney and the underwriter, working from the recorded documents and state law. The survey shows where the interest was written and what stands on the ground, which is the evidence that review depends on.
